DEWALT (DWE7491RS) Technical Specifications and Features

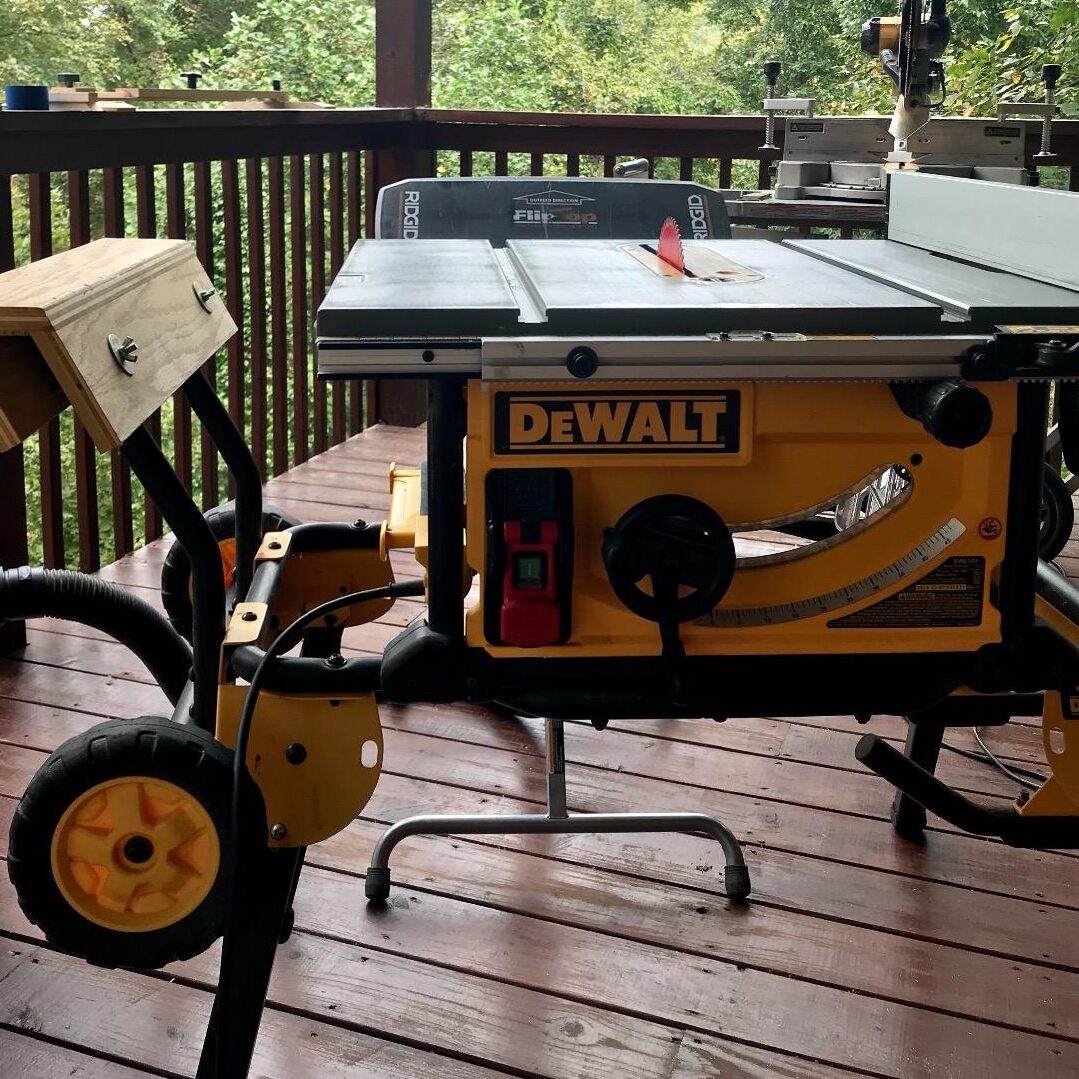

The DEWALT DWE7491RS 10-inch table saw combines power, efficiency, and portability, making it a top choice for professionals and hobbyists alike. Designed for easy setup and stable performance, this table saw features a rack and pinion fence system for fast, accurate fence adjustments and a rolling stand for convenient mobility.

Technical Specifications

SpecificationDetail
ModelDEWALT DWE7491RS
ColorYellow/Black/Silver
Blade MaterialHigh Speed Steel
Surface RecommendationWood
Power SourceCorded Electric
Blade Diameter10 inches
Max Rip to Left of Blade22 inches
Max Rip to Right of Blade32-1/2 inches
Max Width of Dado13/16 inches
Arbor Size5/8 inch
Amps15
Depth of Cut at 45°2-1/4 inches
Depth of Cut at 90°3-1/8 inches
No Load Speed4800 RPM
Item Weight110 Pounds

DEWALT DWE7491RS Top Features

The DEWALT DWE7491RS stands out with its powerful 15.0A motor capable of handling a wide range of cutting jobs, from pressure-treated lumber to hardwoods. Its rolling stand ensures easy mobility and setup, while the rack & pinion telescoping fence system enables quick, smooth, and precise fence adjustments.

  • Rack & Pinion Telescoping Fence System for quick, smooth, and accurate adjustments.
  • 15.0A High Torque Motor delivers the power needed to cut through hardwoods and pressure-treated lumber.

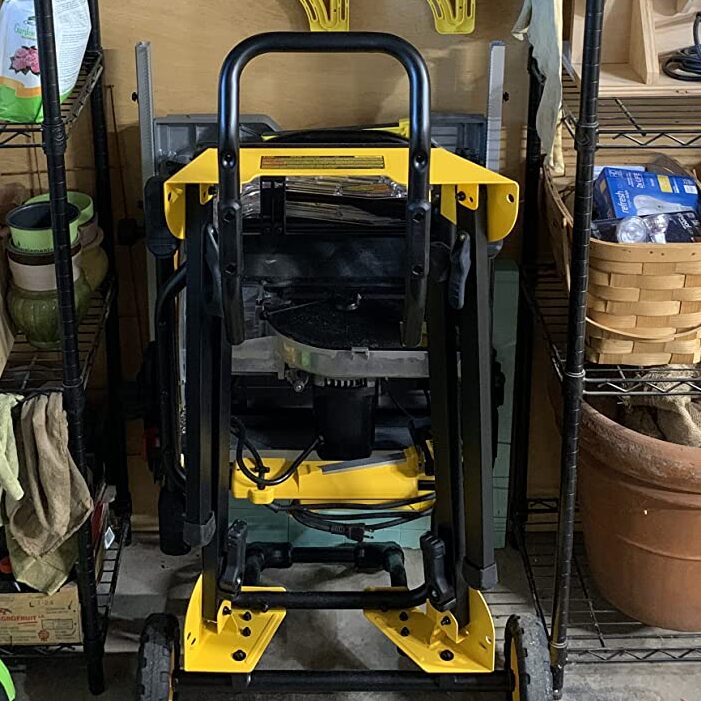

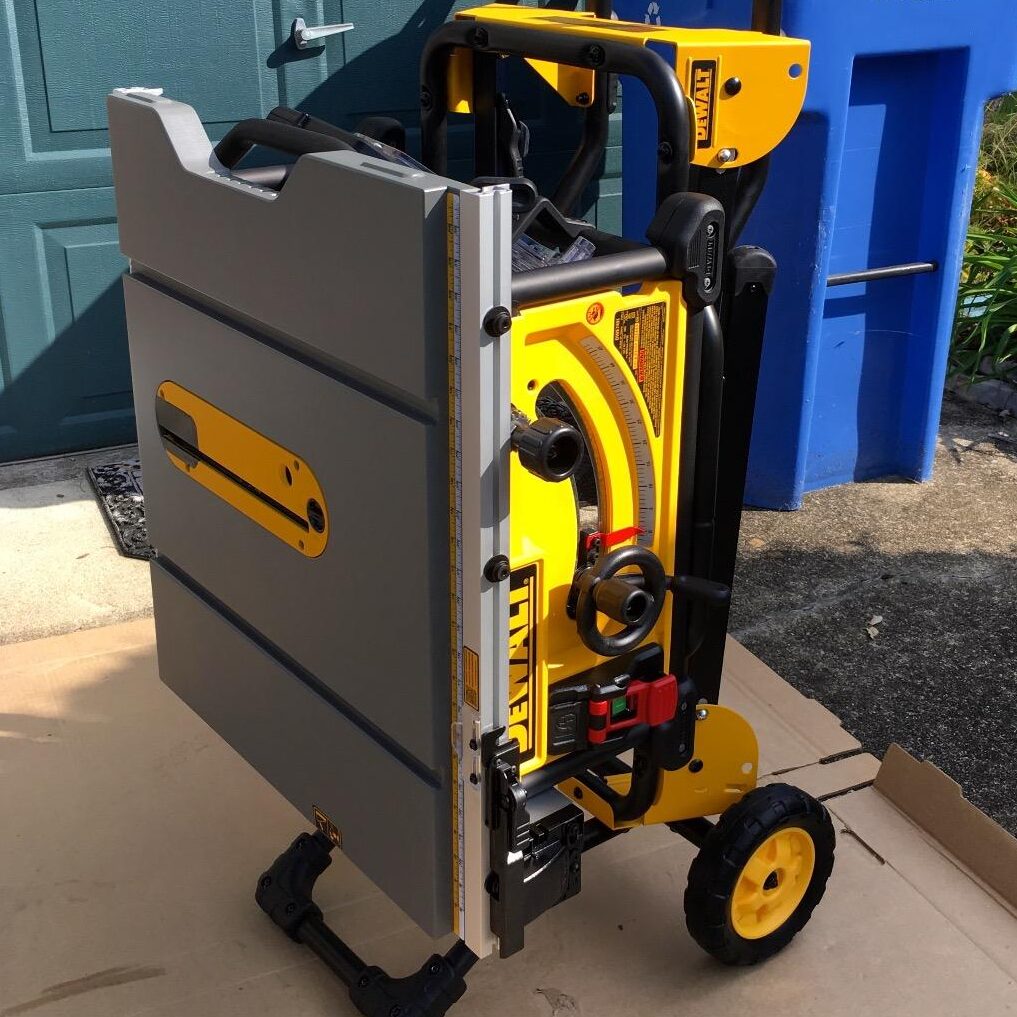

  • Rolling Stand designed for easy set up and breakdown, enhancing portability.
  • Large Rip Capacity of 32-1/2 inches allows for cutting of larger shelving and trim materials.
  • On-Board Storage System provides easy access to the Site-Pro Guard components and push stick when not in use.

FAQ

What type of blade does the DeWalt DWE7491RS come with?

It comes with a 10-inch 24-tooth carbide blade.

Can this saw be used to make dado cuts?

Yes, it can handle dado cuts up to 13/16 inches wide.

What is the maximum depth of cut at 90 degrees?

The maximum depth of cut at 90 degrees is 3-1/8 inches.

Is the stand included with the purchase?

Yes, a rolling stand is included for easy mobility and storage.

How does the rack & pinion fence system benefit users?

It makes fence adjustments fast, smooth, and precise, significantly improving the accuracy of cuts.
